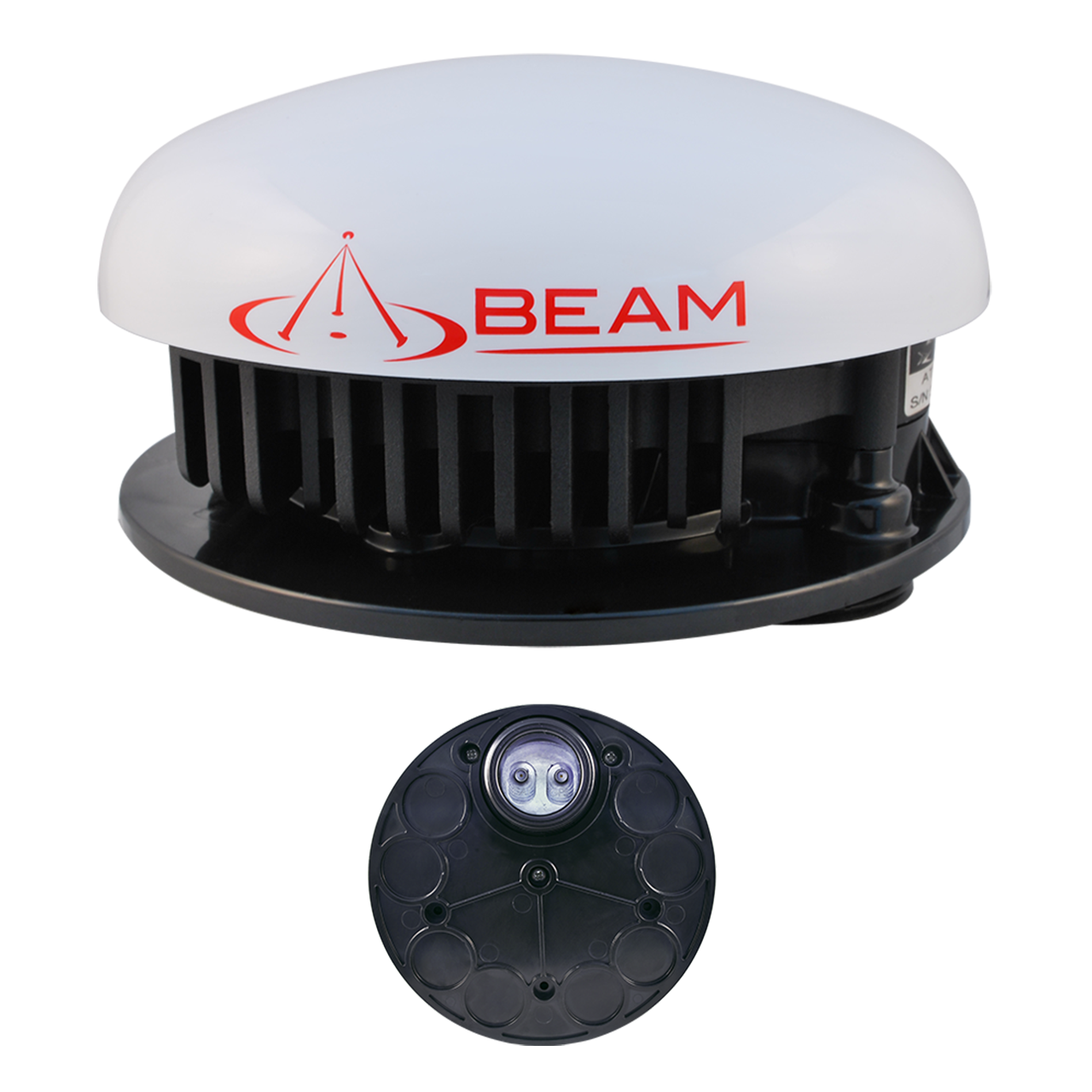

The ISD720 Inmarsat Beam Bolt Mount Transport Antenna is a high-performance, Inmarsat type-approved active antenna designed to support GSPS (Global Satellite Phone Service) applications.

Engineered primarily for vehicular installations, the ISD720 is also suitable for fixed base station deployments where a secure, bolt-mounted antenna solution is required.

The antenna supports both horizontal and vertical cable entry, offering flexible installation options across a wide range of vehicle and infrastructure setups.

Housed in a rugged, weather-resistant enclosure, the ISD720 delivers consistent and reliable satellite performance in harsh operating environments. It is fully compatible with all Beam Inmarsat IsatDock and Oceana terminals and must be used exclusively with Beam-certified active antenna cables to ensure compliance and optimal performance.

Weight: 0.87 kg

Dimensions: 295 x 575 x 575 mm

Mounting Type: Fixed base station / bolt mount

Transmit Frequency (Operational): 1626.5 - 1660.5 MHz

Transmit Frequency (Extended): 1668.0 - 1675.0 MHz

Receive Frequency (Operational): 1525.0 - 1559.0 MHz

Receive Frequency (GNSS): 1575.42 x 10.25 MHz (GPS L1)

Receive Frequency (Extended): 1518.0 - 1525.0 MHz

Impedance: 50 Ohms

GSPS Connector: SMA Female

GNSS (GPS) Connector: SMA Female

Operating & Storage Temperature: -40 deg C to +70 deg C

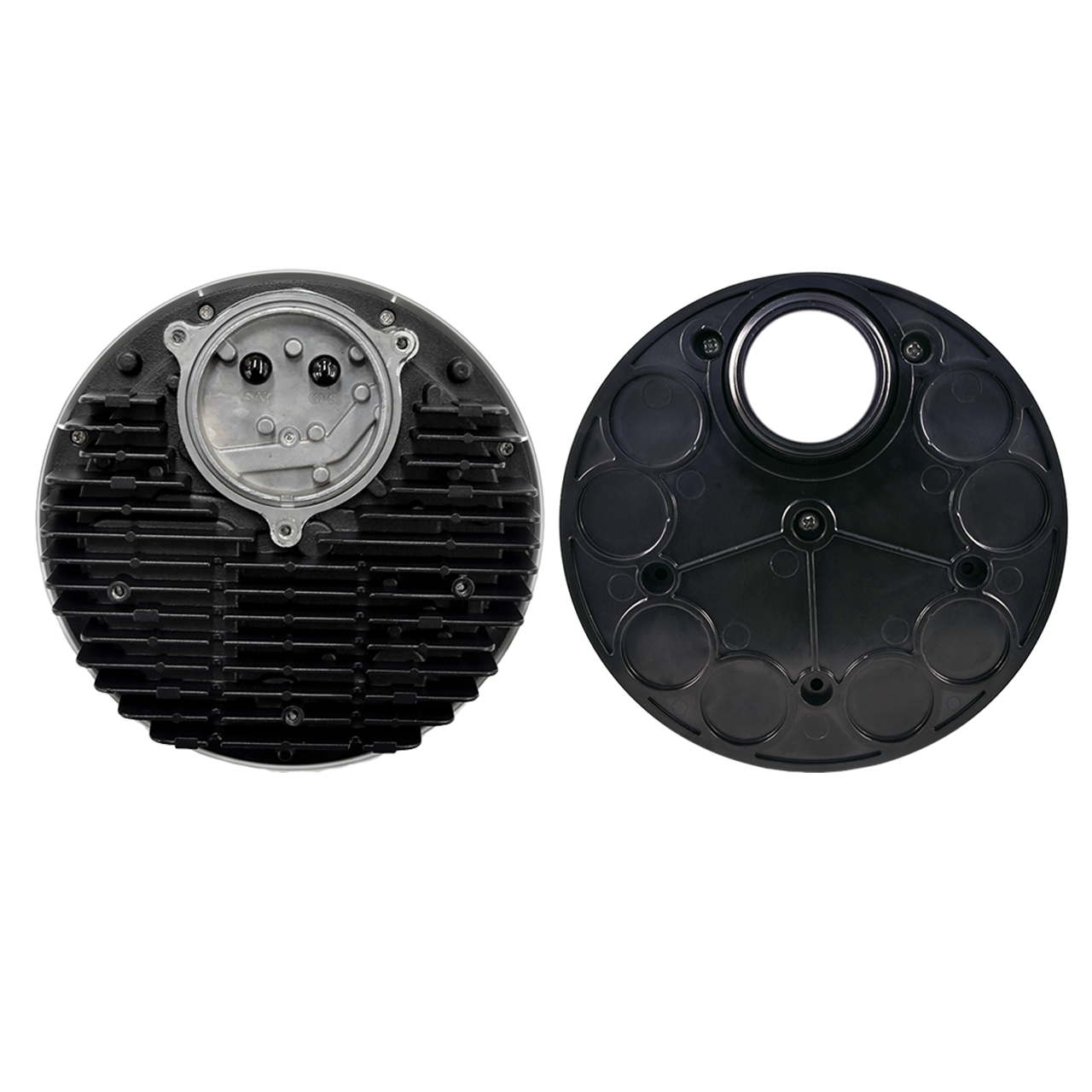

ISD720 Transport Antenna

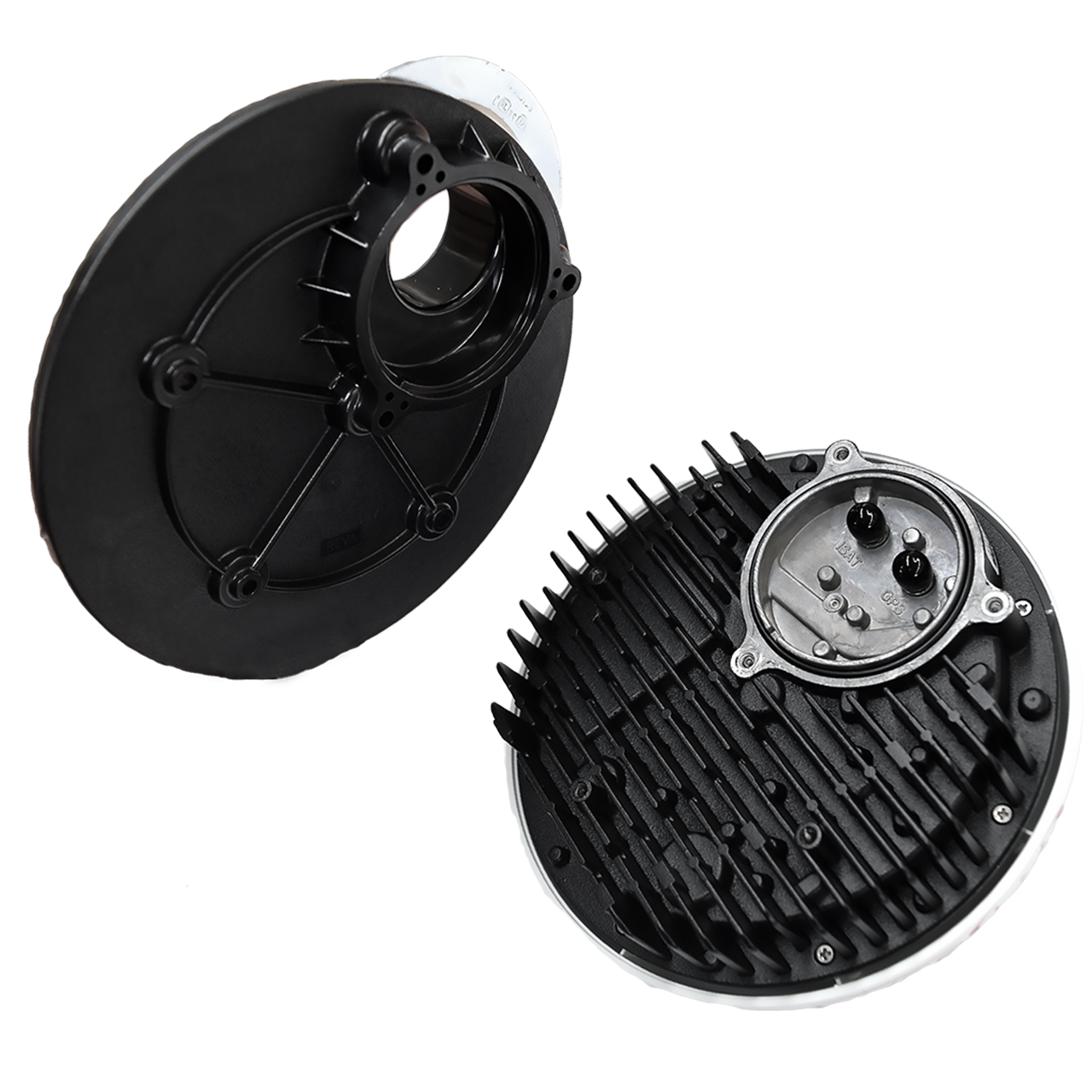

Bolt Mounting Plate

2 x SMA SMA Right-Angled Adaptors

SMA RF Connector Spanner

3 x Small Screws

3 x Large Screws

6 x Small Split Washers

6 x Small Flat Washers

Inmarsat Type Approved: Fully compliant for GSPS satellite communication services.

Active Antenna Design: Ensures strong and reliable satellite signal reception.

Bolt Mount Installation: Provides secure and stable mounting for vehicles or fixed structures.

Flexible Cable Entry: Supports both horizontal and vertical cable routing.

Omni-Directional Coverage: Maintains satellite connectivity from all directions.

Rugged Low-Profile Housing: Weather-resistant design for harsh operating environments.

Terminal Compatibility: Designed for use with Beam Inmarsat IsatDock and Oceana terminals.
