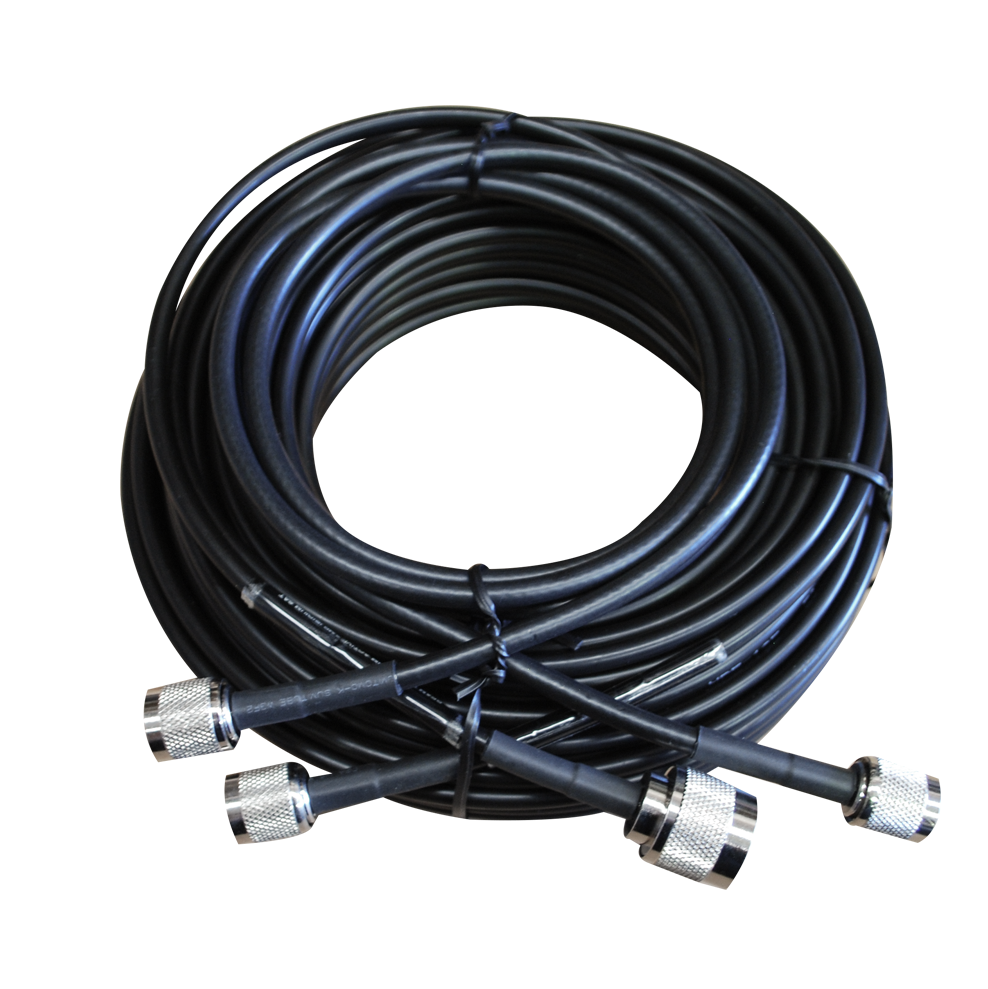

The Beam Iridium 23m Active Antenna Cable is designed for installations where extended cable length is required to connect an active antenna system.

It is suited for fixed, vehicle, and marine setups where the antenna needs to be positioned further away from the main unit to achieve better signal performance.

This cable is compatible with Beam active antenna systems, including the RST740, and includes an amp lead to support proper operation of the active setup.

It provides a practical solution for installations where longer cable runs are needed while maintaining consistent system performance.

Main Cable Length: 23m

Main Cable Diameter: 4.95 mm

Main Cable Bend Radius: 12.7 mm

Main Cable Bend Radius (Repeated): 50.8 mm

Main Cable Operating Temperature: -40 deg C to +85 deg C

Main Cable Connectors: TNC Male to N Male

Amp Lead Length: 1.5m

Amp Lead Diameter: 5 mm

Amp Lead Bend Radius: 12.7 mm

Amp Lead Operating Temperature: -20 deg C to +60 deg C

Amp Lead Connectors: TNC Male to TNC Male

23m Active Antenna Cable

1.5m Amp Lead

Designed for Active Antenna Systems: Suits setups using Beam active antennas such as the RST740.

Supports Extended Installations: 23m cable allows antenna placement further from the main unit.

Includes Amp Lead: Provides the required connection for active antenna operation.

Suitable for Fixed and Mobile Use: Works across vehicle, marine, and fixed installations.
