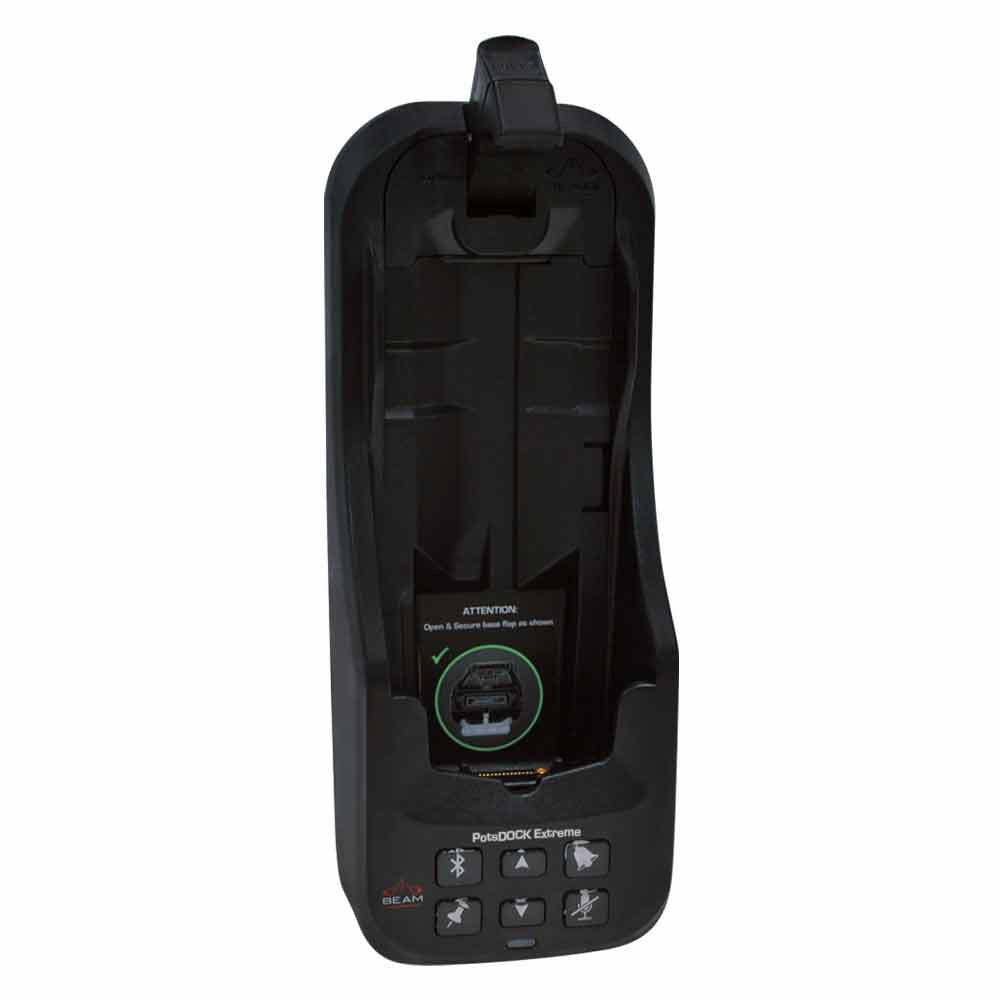

The Beam Extreme (9575) PotsDOCK is a satellite phone docking station designed for fixed and semi-fixed installations where reliable off-grid voice and data communication is required.

Specifically engineered for the Iridium Extreme 9575 handset, the PotsDOCK enables direct connection to standard POTS (RJ11) telephone systems, allowing satellite calls to be made through corded or cordless landline handsets.

The dock supports satellite voice, SMS, Short Burst Data (SBD), and circuit-switched data, making it suitable for remote offices, emergency coordination centres, field bases, and infrastructure sites beyond mobile coverage.

With integrated Bluetooth, USB data interface, wide-range DC power input, and external antenna support, the Beam Extreme PotsDOCK provides a dependable satellite communications interface for professional and mission-critical environments.

Compatible Handset: Iridium Extreme 9575

Input Power: 9-32 V DC (2 A max)

Average Power Consumption: 1.1 W (75 mA @ 15 V DC)

Dimensions: 212 x 82.2 x 75.9 mm

Weight: 450 g

Dock Operating Temperature: -20 deg C to +70 deg C

Handset Operating Temperature: -10 deg C to +55 deg C

Charging Temperature Range: 0 deg C to +40 deg C

Storage Temperature Range: -30 deg C to +85 deg C

Operating Humidity: <85% RH (non-condensing)

Network: Iridium

Beam Extreme 9575 PotsDOCK Docking Station

DC Power Cable with Fuse Kit

RAM Mounting Bracket

3 x M4 Screw Set

User Manual

POTS / RJ11 Interface: Enables connection to standard corded or cordless landline telephones, with cable runs up to 600 m (2000 ft).

Designed for Iridium Extreme 9575: Secure docking, charging, and full handset integration.

Multiple Communication Modes: Supports voice calls, SMS, Short Burst Data (SBD), and circuit-switched data.

Integrated Bluetooth: Allows compatible wireless accessory connectivity.

USB Data Interface: Provides data connectivity for supported applications.

Wide Voltage Input: 9-32 V DC operation with included AC plug pack (110-240 V input).

External Antenna Support: TNC and SMA connectors for Iridium and GPS antennas.

Certified & Compliant: Approved to Iridium, RoHS, CE, IEC60945, and AS/EN60950 standards.
