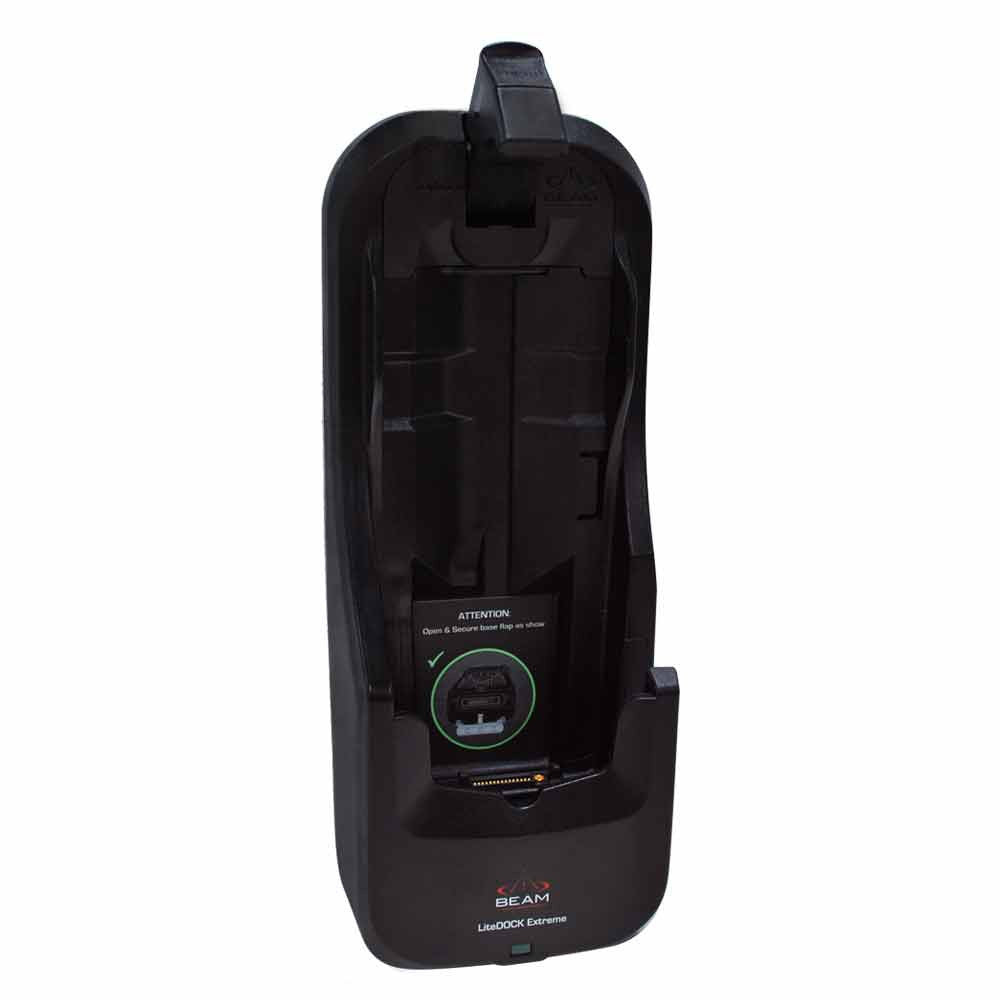

The Beam Extreme (9575) LiteDOCK is a compact satellite docking station designed specifically for the Iridium Extreme 9575 satellite phone, providing reliable satellite voice and data connectivity in mobile and remote operating environments.

Offered as a Build Your Own Bundle, the LiteDOCK allows users to configure the docking solution with compatible accessories such as antennas, power options, and mounting hardware to suit vehicle-based or temporary installations.

The LiteDOCK supports satellite voice calls, SMS, Short Burst Data (SBD), and circuit-switched data, making it suitable for field operations, transport, emergency response, and remote work applications.

Designed with a slimline profile and lightweight construction, the Beam Extreme 9575 LiteDOCK delivers dependable performance while minimising installation space, making it ideal where compact dock solutions are required.

Compatible Handset: Iridium Extreme 9575

Input Power: 6 V DC (850 mA max)

Average Power Consumption: 5 W

Dimensions: 212 x 82.2 x 75.9 mm

Weight: 375 g

Dock Operating Temperature: -20 deg C to +70 deg C

Handset Operating Temperature: -10 deg C to +55 deg C

Charging Temperature Range: 0 deg C to +40 deg C

Storage Temperature: -30 deg C to +85 deg C

Operating Humidity: <85% RH (non-condensing)

Network: Iridium

Beam Extreme 9575 LiteDOCK Docking Station

Universal RAM Mounting Bracket

Earpiece Extension Cable

User Manual

Designed for Iridium Extreme 9575: Purpose-built docking solution providing secure handset mounting and charging.

Compact Slimline Design: Low-profile dock suited to space-constrained vehicle and field installations.

Multiple Communication Modes: Supports voice calls, SMS, Short Burst Data (SBD), and circuit-switched data.

USB Data Interface: Enables data connectivity for compatible applications and devices.

External Antenna Connectivity: SMA connector supports connection to certified Iridium antennas.

Certified & Compliant: Fully certified to Iridium, RoHS, CE, and IEC60945 standards.

Professional Reliability: Designed for field, transport, emergency, and remote operational use.
