Description

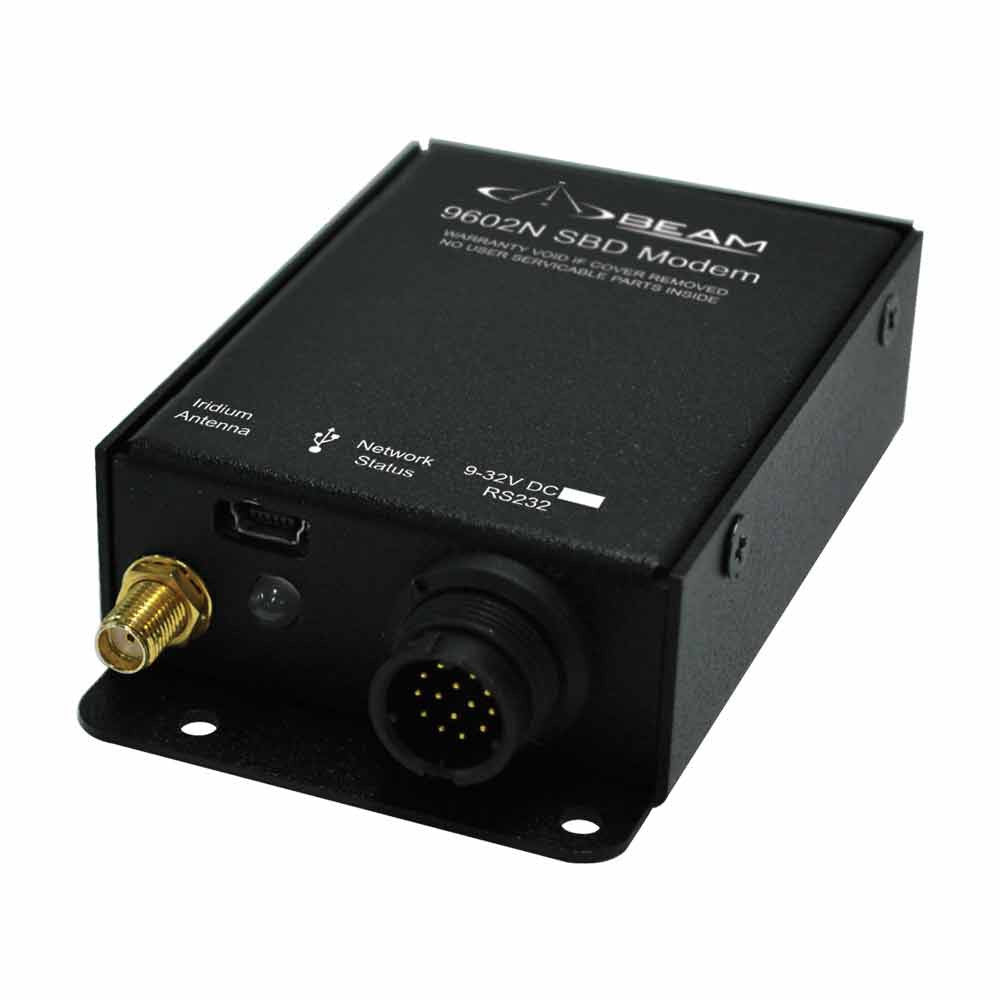

The Beam 9602N SBD Modem is a compact satellite data device designed to provide reliable Short Burst Data (SBD) communication using the Iridium network.
It is suited for IoT, asset tracking, monitoring, and remote control applications where consistent data connectivity is required beyond mobile coverage.
With a rugged design and flexible power input, it can be used in vehicle, fixed, and industrial installations where reliability is important.
Operating on the Iridium satellite network, it delivers global coverage independent of terrestrial infrastructure, making it a practical solution for remote and backup communication systems.
Specifications
Dimensions: 90 x 59 x 25 mm
Weight: 250 g
Warranty: 12 Months
Power Input: 9-32V DC
Power Supply: 100-240V AC (via power pack)
Data Speed: 2400 bps
Frequency Range: 1616 - 1626.5 MHz
Operating Temperature: -40 deg C to +85 deg C
Kit Contents
9602N SBD Modem
Mounting L Bracket with Screws
Power & IO Cable
DC External Power
Coaxial Adapter
User Manuals & CD-ROM
Features
Global Satellite Coverage: Provides data communication anywhere using the Iridium network.
Designed for Integration: Suitable for IoT, tracking, and remote monitoring systems.
Flexible Power Input: Supports 9-32V DC for use in vehicle and fixed installations.
Compact and Rugged Design: Built for use in demanding environments.
Multiple Interface Options: Includes USB and RS232 for system integration.
